CastNet modelling for Abaqus

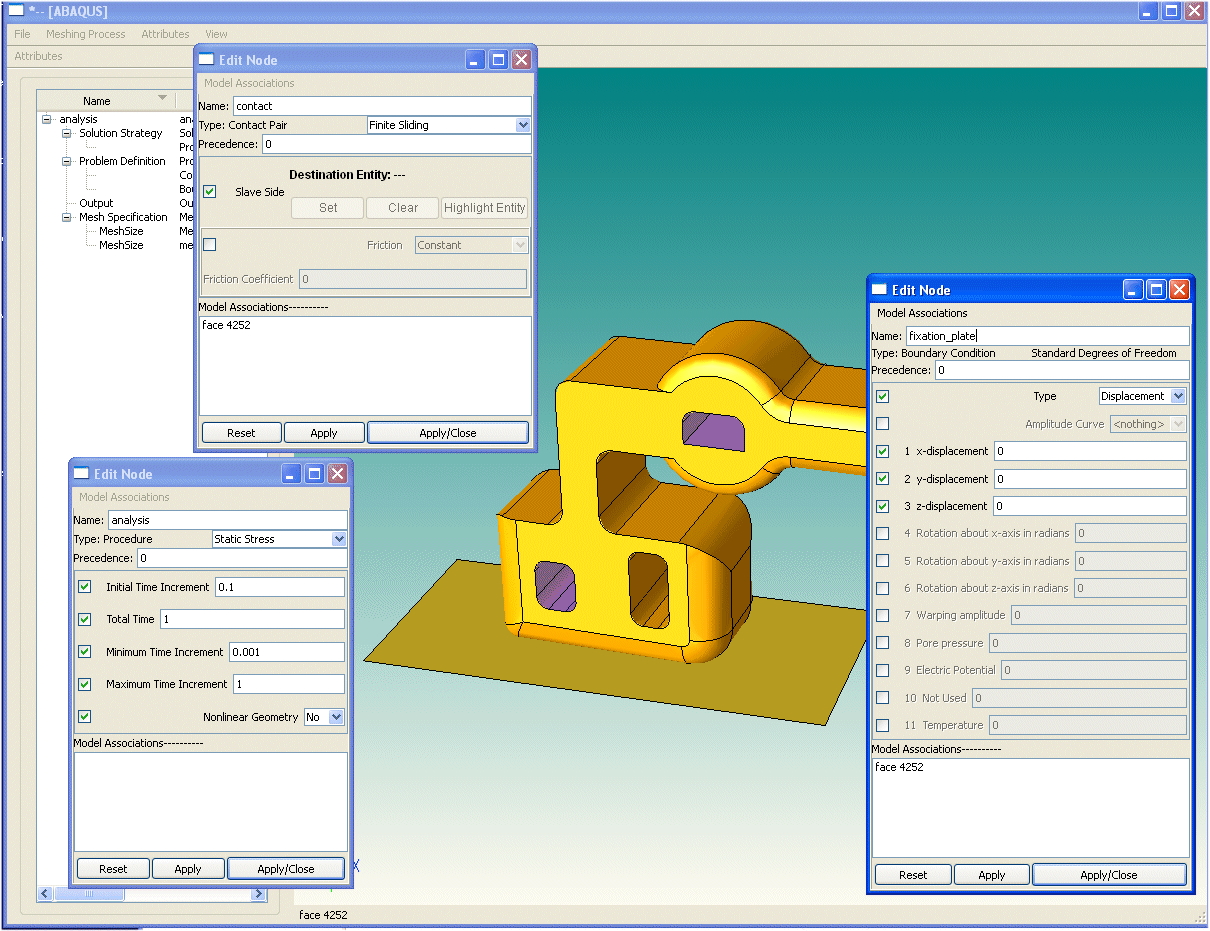

Essential Abaqus model setups can be adjusted in CastNet:

Aufzählung

Definition of Abaqus solver settings, element groups, materials

Aufzählung

Convenient definition of boundary conditions, loads and contact surfaces

Aufzählung

Definitions of amplitudes, curves and outputs

Aufzählung

Supports second-order curved elements for shells and solid elements

Aufzählung

Supports all meshing features (e.g. boundary layer feature for crack analysis)

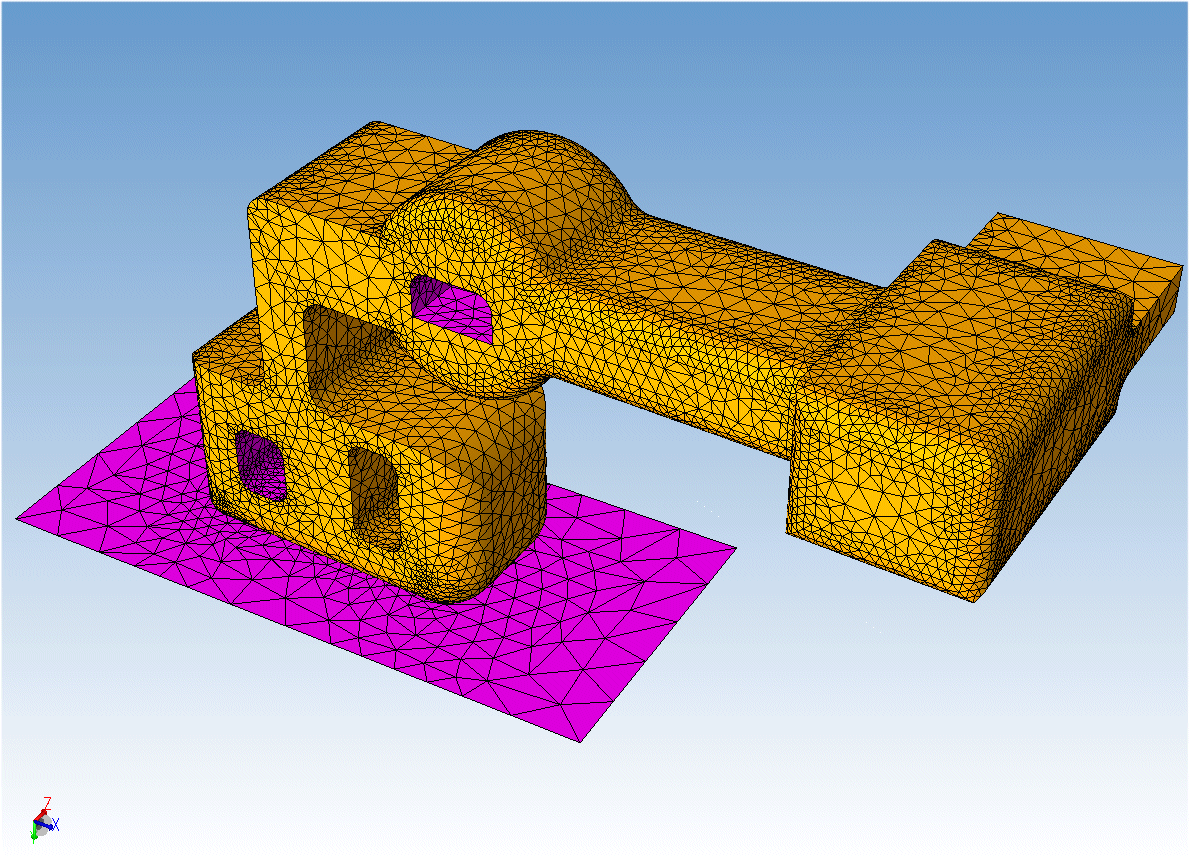

CastNet modelling for Abaqus Second order curved elements and shell/solid elements

Click images to enlarge
