CastNet provides state of the art meshing capabilities for boundary layers:

Aufzählung

Blends between boundary layer faces
Aufzählung

Resolves boundary layer intersections
Aufzählung

Individual boundary layer sizes

Aufzählung

Various growth rates options for boundary layer grids
Aufzählung

Transition capabilities from boundary layers to volume mesh
Aufzählung

Boundary layer connection from extrude to free mesh region

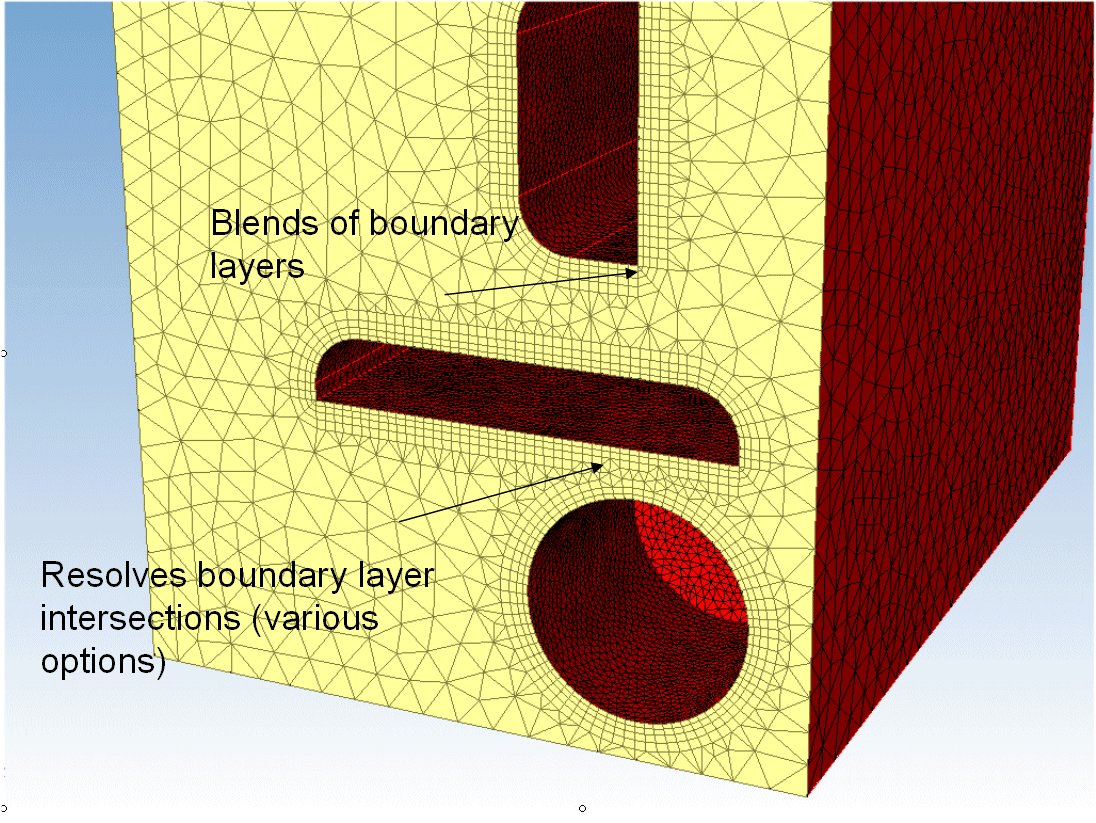

Blends and intersections

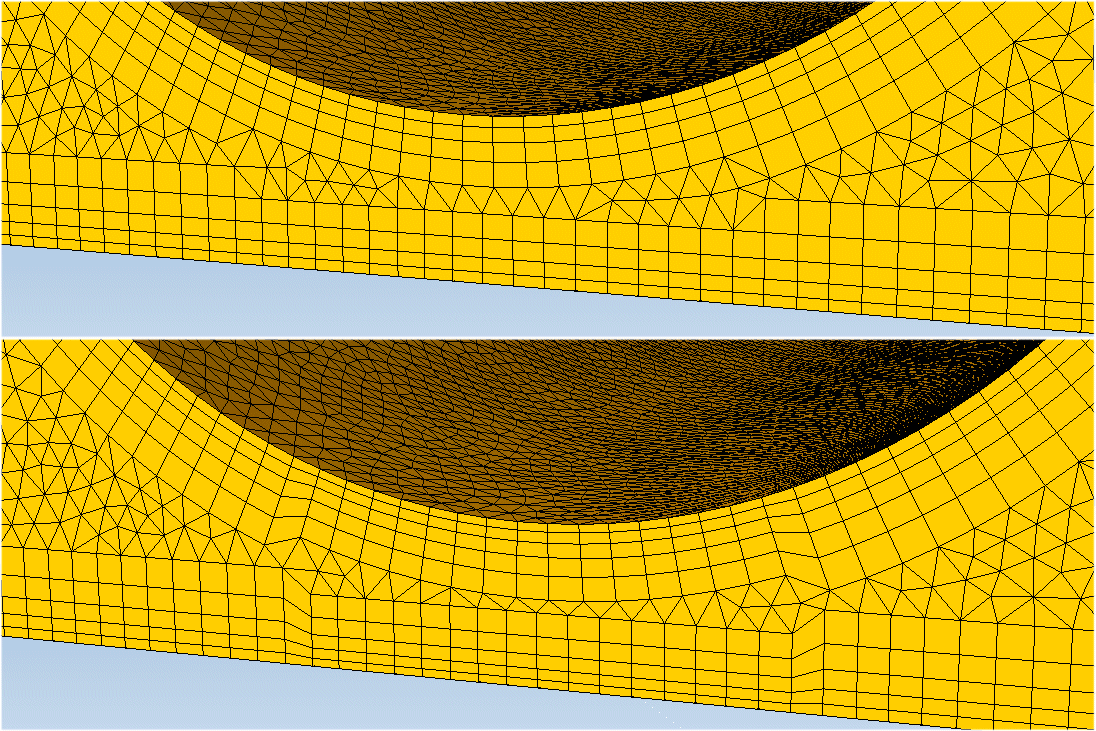

Boundary layer intersections (shrink or transition)

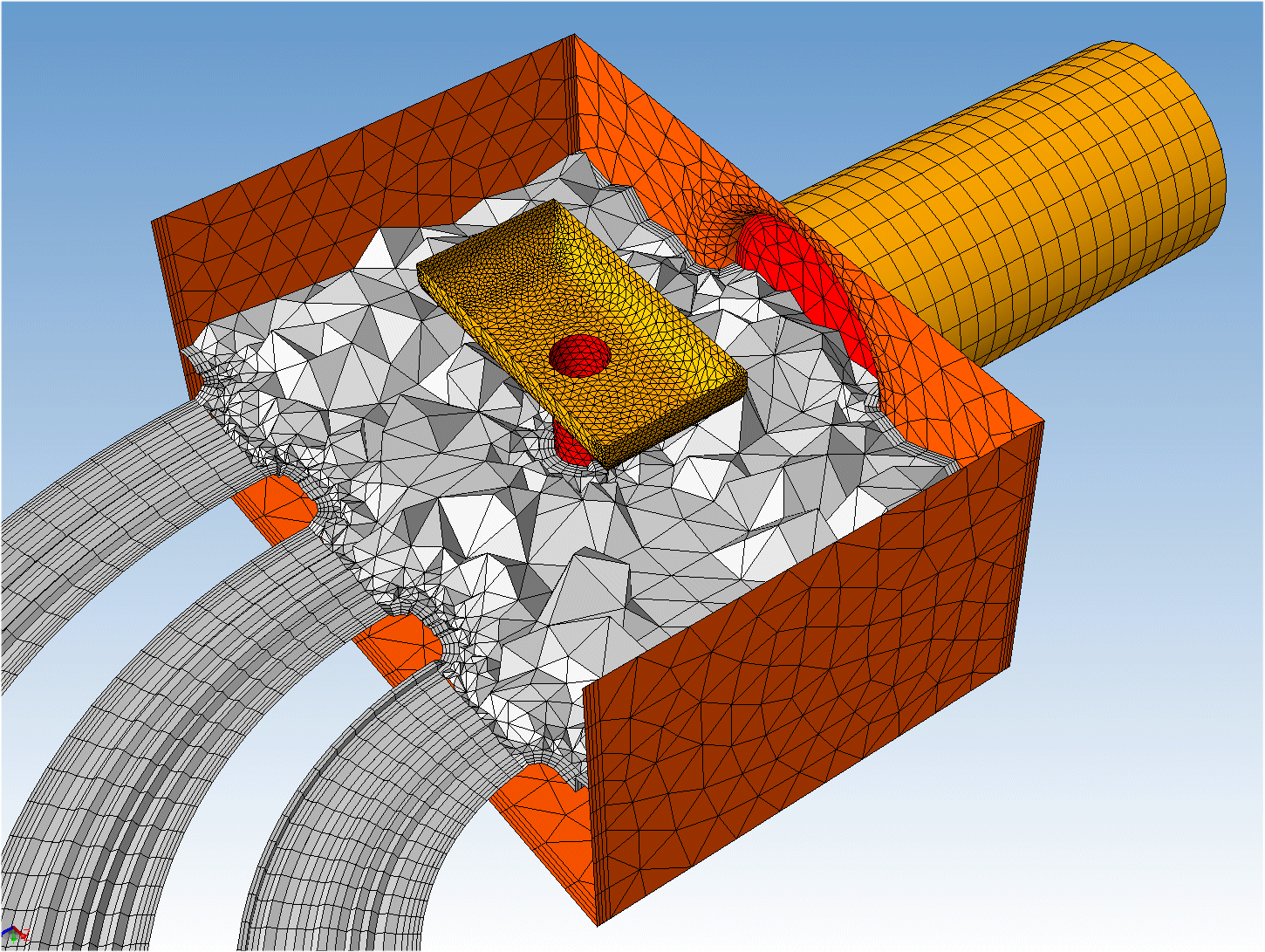

Boundary layer connection from extrude to free mesh region

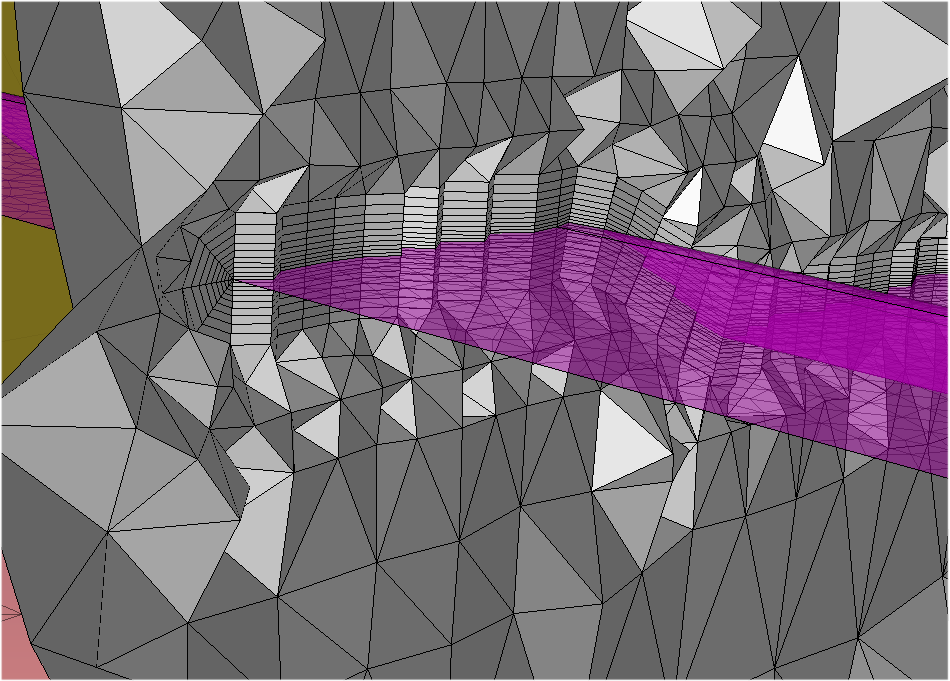

Blends around baffle face

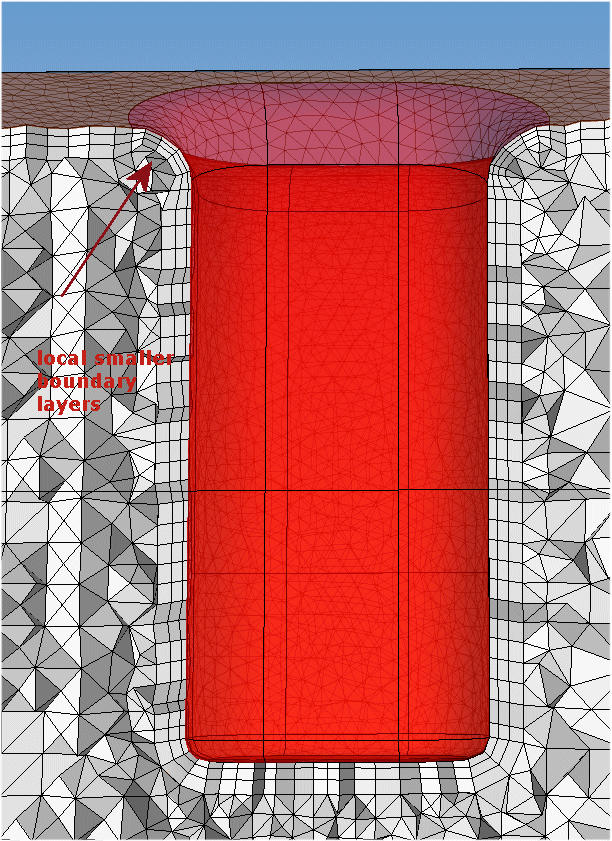

Individual boundary layer sizes



click on the images to enlarge
