Mesh Quality

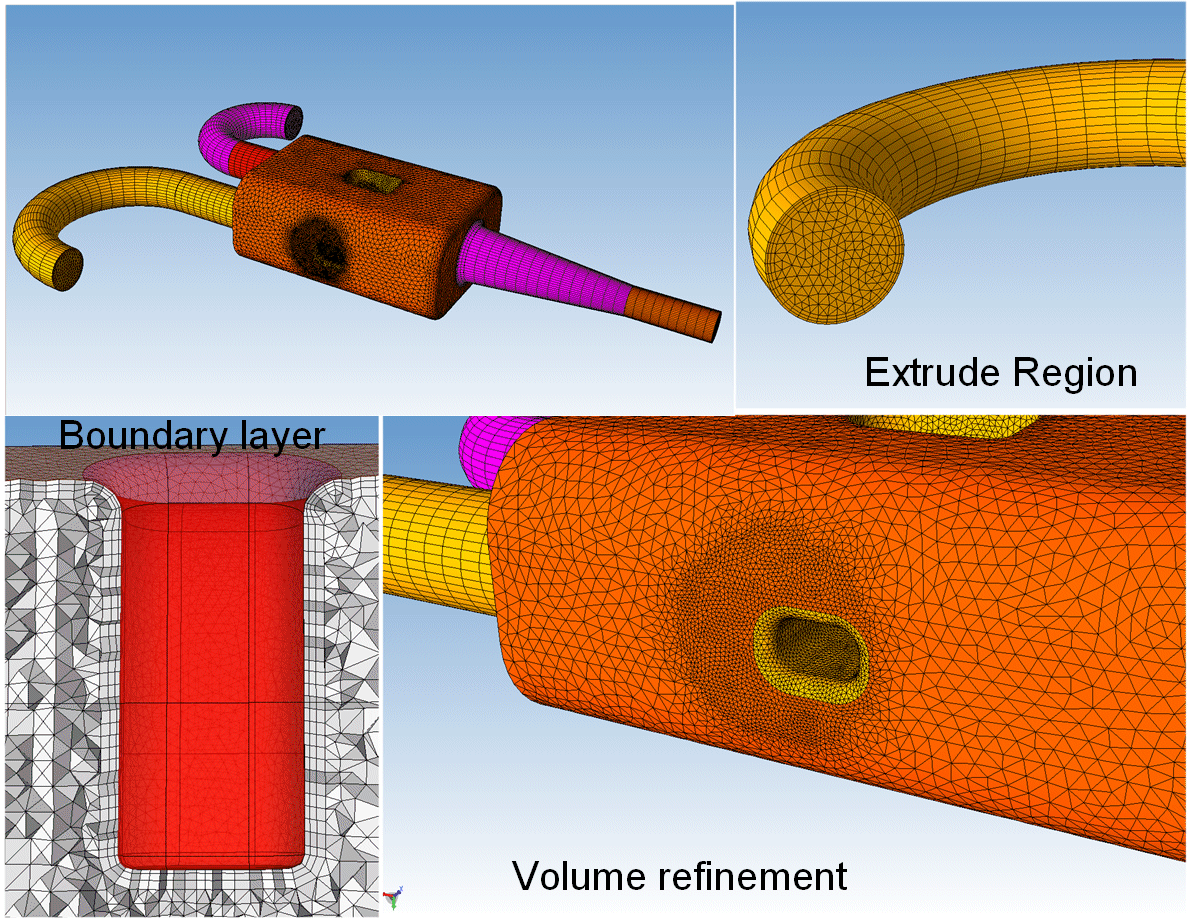

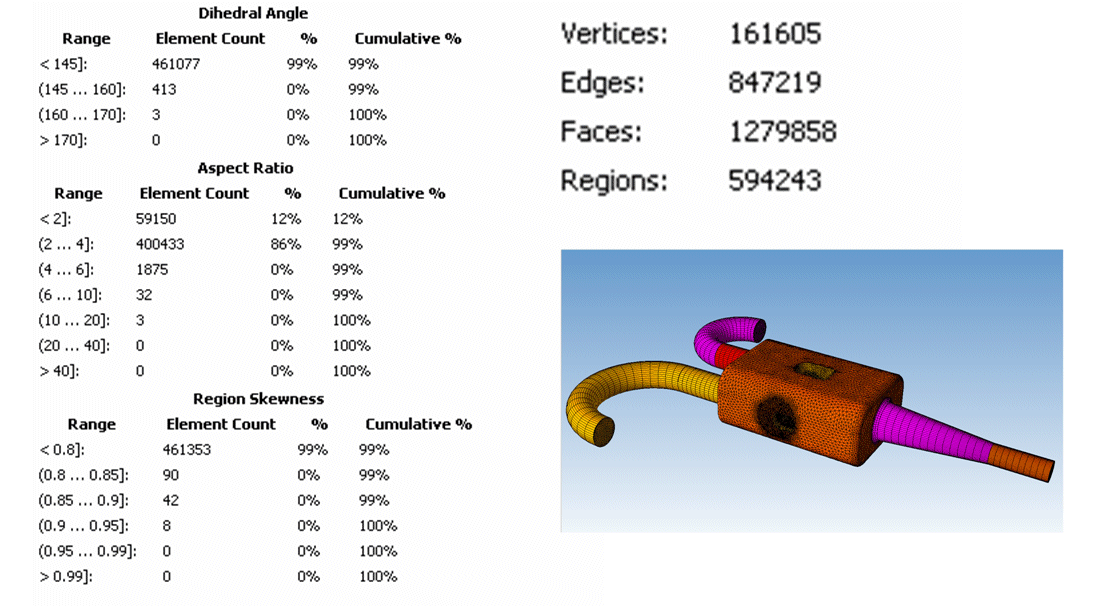

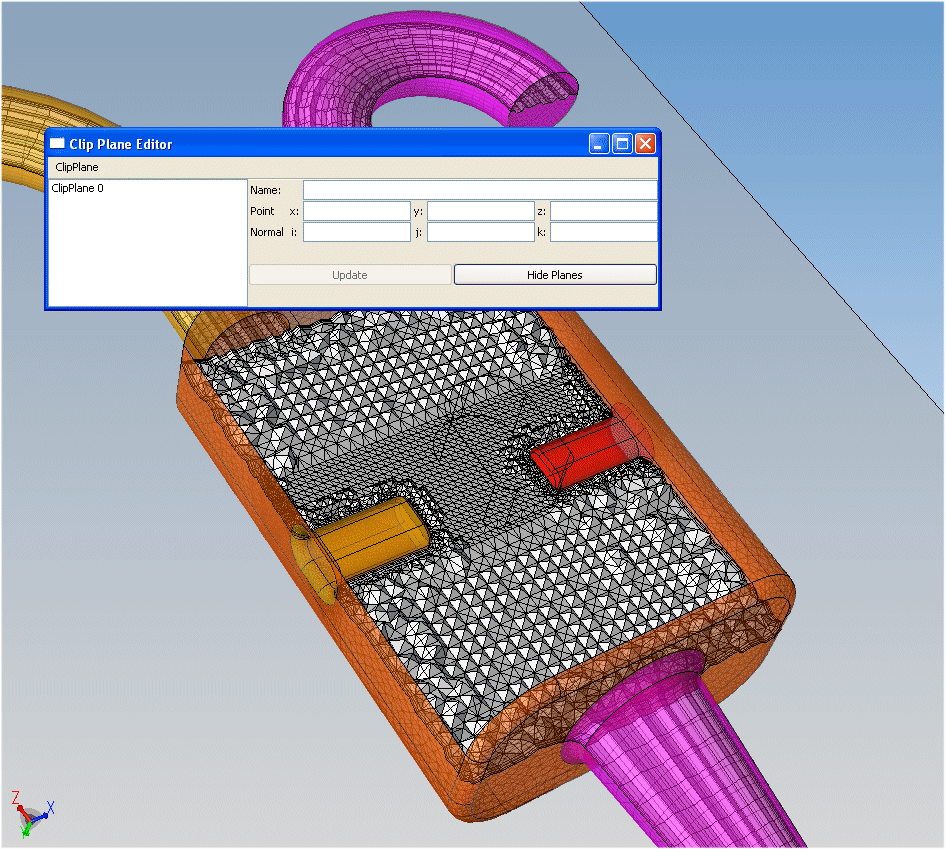

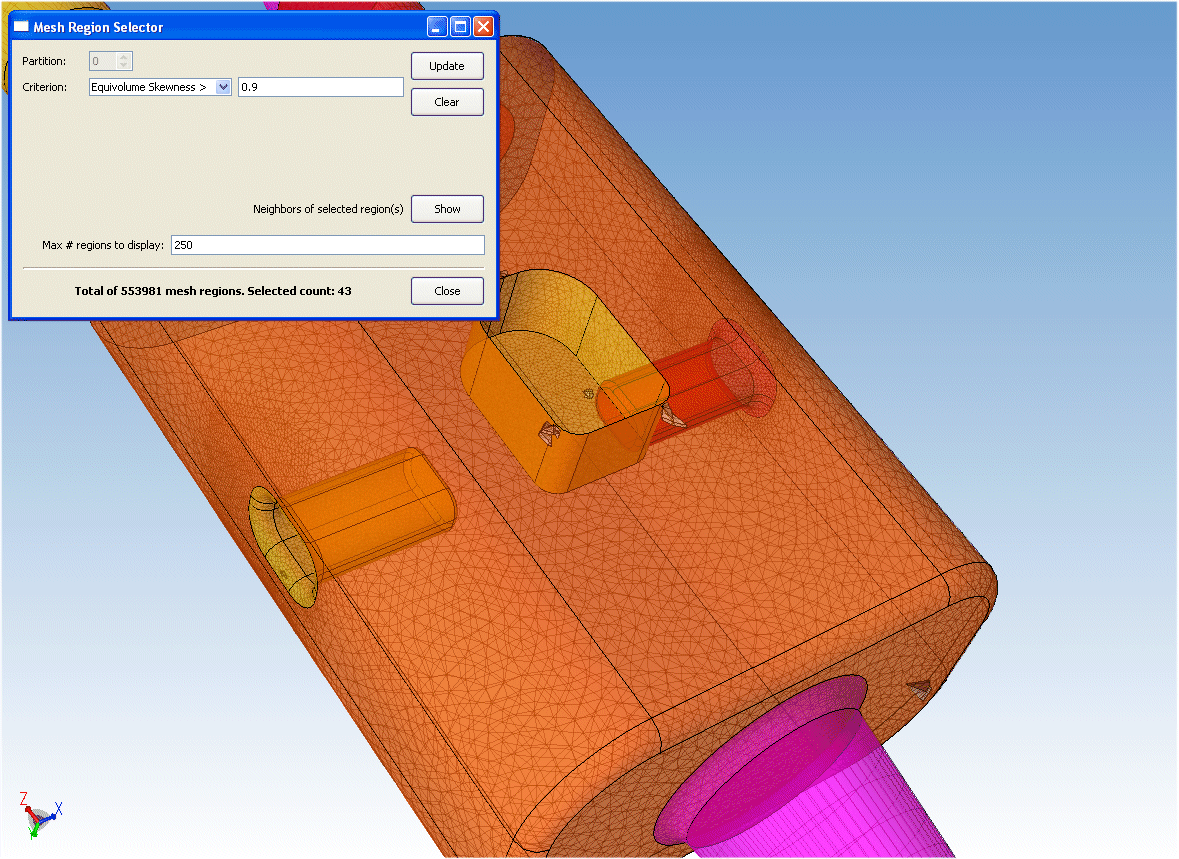

Most of the meshing tools generate meshes using a step by step approach: Surface mesh, boundary layer and volume mesh. Each mesh sub-step is an independent, fixed process. CastNet works differently: It generates and optimises the mesh under consideration of all parameters. If, for example, a difficult situation occurs during the volume meshing, the generation process can still access and improve the surface mesh in order to overcome the situation. Hence, CastNet generates high-quality meshes. However, difficult geometry situations may include regions, which are difficult to mesh, or special solution processes may require a particular mesh quality. CastNet provides a detailed report of the mesh quality. Problematic elements are identified and visualised for local mesh improvements or geometry changes.
